The New Cloud Service for GNET Dash Cam Users



withCLOUD™





“withCLOUD” for fleet management system by GNET SYSTEM's technology. Unlimited storage capacity beyond the limitation of dash camera memory card.





Live Streaming	Live GPS tracking
Monitor driving and vehicle status in live, video feeds are available from all dash cam channels	Check vehicle’s location by tracking GPS signal, and check simply status of traffic condition



Statistics	Geo-Fence
Check driving patterns, analysis data of time period of packing mode, driving mode, speed and distance.	Set a fence of boundary to a designated location, it provides notification to the driver with a security alert

























   Outstanding Visibility under the Starlight

The STARVIS is back-illuminated pixel technology used in CMOS image sensors for surveillance camera applications.
It features a sensitvity of 2000 mV or more per1 um2(color product, when imaging with a 706cd/m2 light source,
F5.6 in 1 s accumulation equivalent), and realize high picture quality in the visible-light and near infrared light regions.





























   3 Functions for Safe Driving



ADAS





"ADAS update"

ADAS is a safe driving assistance system for the driver's safe driving environment



FVSA Front Vehicle Start Alarm		FCWS Forward Collision Warning System		LDWS Lane Departure Warning System
The vehicle in front of you is pulling away more than 2 meters, the dash cam let the driver know with the beep sound  also the departure icon on the LCD screen. *Non-LCD product provides sound warning only		If the distance of the vehicle in front of you is reducing rapidly in short time with high speed, the dash cam let driver know with the beep sound and display collision warning icon on the LCD screen. *Non-LCD product provides sound warning only		If you leave the lane while driving, the dash cam let the driver know with beep sound and it shows yellow or red lines for notification on the LCD screen. *Non-LCD product provides sound warning only





* Warning icons for lane detection, forward departure and collision are only visible if the LCD is on.
ADAS settings are available when the GPS is connected.

























Available for long parking records

TIME LAPSE





Time-lapse function automatically applied when entering parking mode





Time Lapse mode records one frame per second, minimizing the size of the video for a long time to record parking.

























   Video codec(HEVC)

*HEVC(High Efficiency Video Coding)



H.265





H.265 compression rate is up to 2 times higher than H.264.

It means that users can use 256GB SD card as 512GB SD card.





























   Clear Recording Quality when Driving at Night



REAL HDR





Real HDR is installed to remove light blurring when driving at night,

and it shows clear recording quality in various lighting conditions such as backlight and tunnels.





























   Optimal Viewing Angle without Distortion



WIDE VIEWING ANGLE





Front camera: 140° / Rear camera: 140°







Excessive angle of view refracts the image, causing effects such as distortion and loss of distance.

The GNET System has an optimal camera angle of 140° and Interior IR with a 180° angle of view without those problems,

the situation of accidents on the side angle is recorded more reliably, and images without distortion of left / right / up / down are provided.

























   Smartphone Link via Wi-Fi®



G-NET APP







User-friendly GUI



User convenience has been further upgraded

using intuitive icons for anyone to operate conveniently











User-focused Firmware Upgrade	All the features you need at once! Easy and convenient GNET APP	Customized configuration by APP
After accessing the firmware configuration by APP, the latest firmware can be automatically searched for and downloaded.	You can easily set up device registration, real-time video setup, recorded video list, and customer support through the main screen.	Using the Smartphone APP, you can upgrade the firmware and play video as well as configure various settings











*You can only connect your smartphone with WiFi® dongle connected to the dash cam(WiFi® dongle is sold separately)

*Disable IOT/WiFi feature when CLOUD is enabled

























   For Vehicle Battery Discharge Protection



LBP FUNCTION





It is an intelligent Safe Guard function that automatically shuts down recording when the voltage falls below

a specified voltage and cuts off the power to protect the battery of the vehicle.







LBP FUNCTION AUTO SAFE GUARD ( LBP ON / OFF )



Settings can be made directly from the dedicated GNET PC VIEWER, and the vehicle voltage can be checked when checking

the recorded video of the vehicle. You can easily set up wirelessly via GNET APP at the time of smartphone interlocking





Division	Configurable Voltage (V)
Power Off	11.3	11.5	11.8	12	12.3

























   Convenient and Diverse Functions



FUNCTION





HIGH TEMPERATURE TEST PASS	MEMORY CARD AUTOMATIC RECOVERY AND SELF-FORMAT	BUILT-IN VOICE GUIDE AND MICROPHONE
G-Net has been passed the high-temperature test. Differs from other brand dash cameras which shut down the power because they can not withstand high temperatures.	Unlike other companies' dash cam, which require users to format periodically, JDR file system with excellent reliability is applied for convenient use without regular format.	It has a friendly voice guide, high-quality voice recording, and a high-performance microphone, which makes it easier to check the operation and recording conditions while driving.



SECURITY LED	EXTERNAL GPS	VARIOUS RECORDING MODES
It is equipped with intelligent security LED to prevent crimes, door ding etc. It detects movement with a clear view in parking mode and starts recording automaticall	You can check at a glance the data image received from the GPS while driving. * External GPS is optional (sold separately)	Parking Surveillance / Motion Detection The event recording is automatically recorded for a certain period of time when the impact is detected on the vehicle in various recording modes.

























   Compitable GNET PC VIEWER



GNET PC VIEWER





Easily play and check the recorded video with a viewer program for PC



It provides various functions Zoom, partial zoom function, Lane drawing function, set recording frame.
Backup features include AVI/MP4 file generation, tampering prevention, thumbnails, and interval repetitive searches.









---

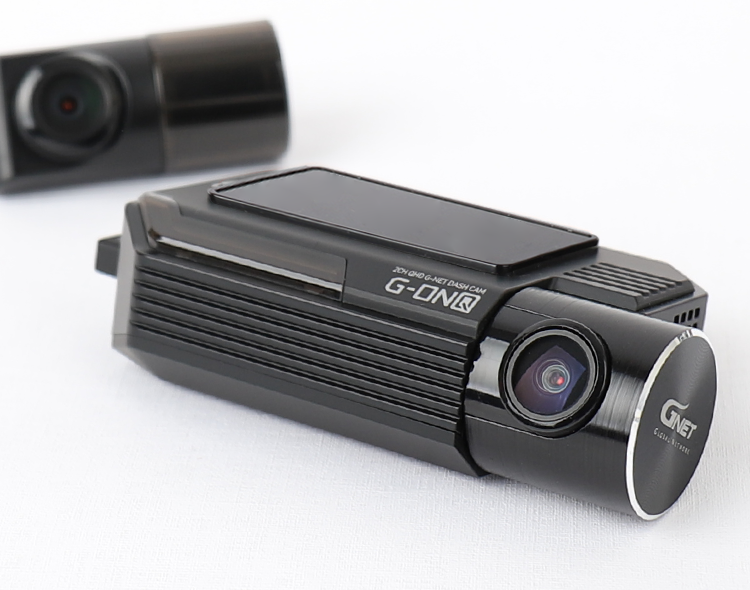

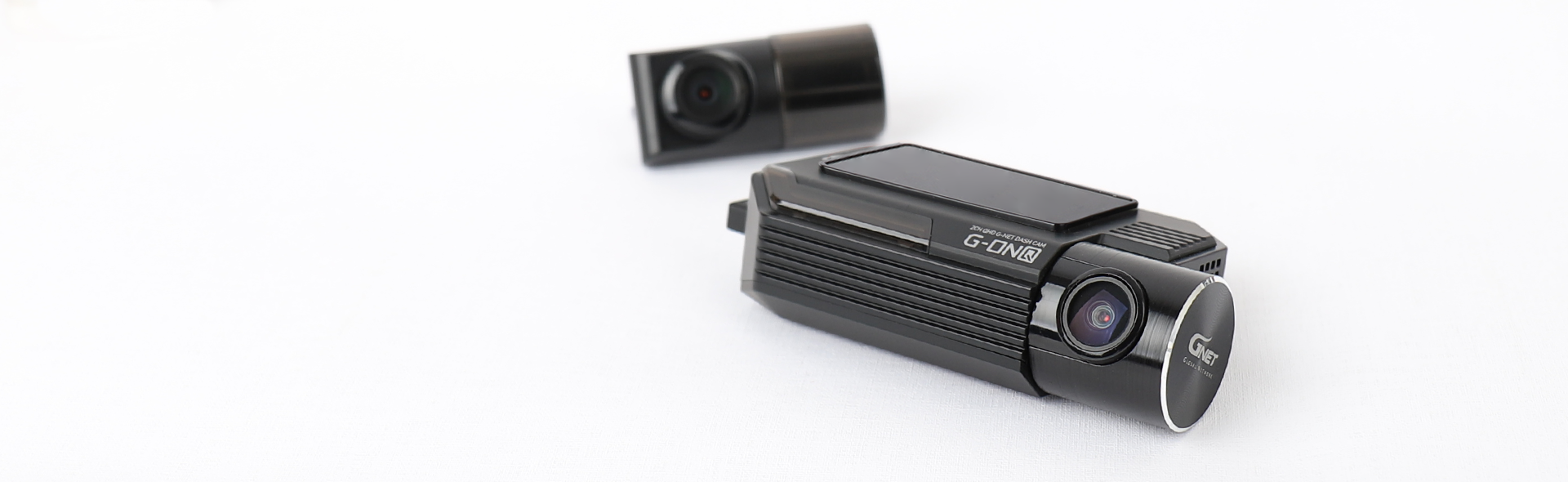

   G-ONQ DASH CAM



SPECIFICATION





※The image of components may be different from the real components.
※Specifications and Components may be changed without notice for improving quality.
※We are highly recommend to use a Genuine Memory card from Gnetsystem.













Image Sensor		SONY Starvis (HDR)
Audio input		Built-in Microphone
Video Compression		H.265
Audio Compression		ADPCM
Resolution		Front : QHD (2560 X 1440) / Rear : QHD (2560 X 1440)
Frame Rate		All cameras : Max. 30 FPS
3G/4G/Router (Optional)		Connect to withCLOUD™ via 3G/ 4G/ Router telecommunication
Wi-Fi (Optional)		Connect to GNET Smart phone application via Wi-fi® dongle
G-Sensor		Event recording by External Shock
Speaker		Operation Status alarm / Voice guidance
External GPS		Synched with Google map, Keep track of location and Speed
Angle Of View		Front : 140˚, Rear : 140˚
Viewer		Windows XP/7/8/10, Support 32Bit / 64Bit,  Synchronizing Google map with PC viewer is supported over Windows7 and explorer 10 as per Google' s policy.
Power		DC 12V - 24V
Acceptable current value of the supplied fuse		3A
Operation Temperature		-10℃ ~ 70℃
Humidity		10~95%
Dimension (WxHxD, mm)		Front :116x56x32 Rear(Including the bracket) : 44x38x28
